Load Range:   Up to 17100 pounds

         General Purpose Isolator Series



The HD Isolator Series is Designed for Equipment Subject to Moderate Multi-Directional Forces. Features Include:





          Heavy-Duty Steel Housing

             Fully Seam-Welded Construction

             Oil-Tempered, High-Carbon Steel Springs, Color Coded by Load Range

             Heavy-Duty Hardware, Zinc-Plated

             All-Directional Snubbing Pads and Vertical Limit Stops

             Load Ratings GUARANTEED with Efficiencies Approaching 100%



HD Spring Vibration Isolator
Features
Features
press to zoom
Loading Data
Loading Data
press to zoom

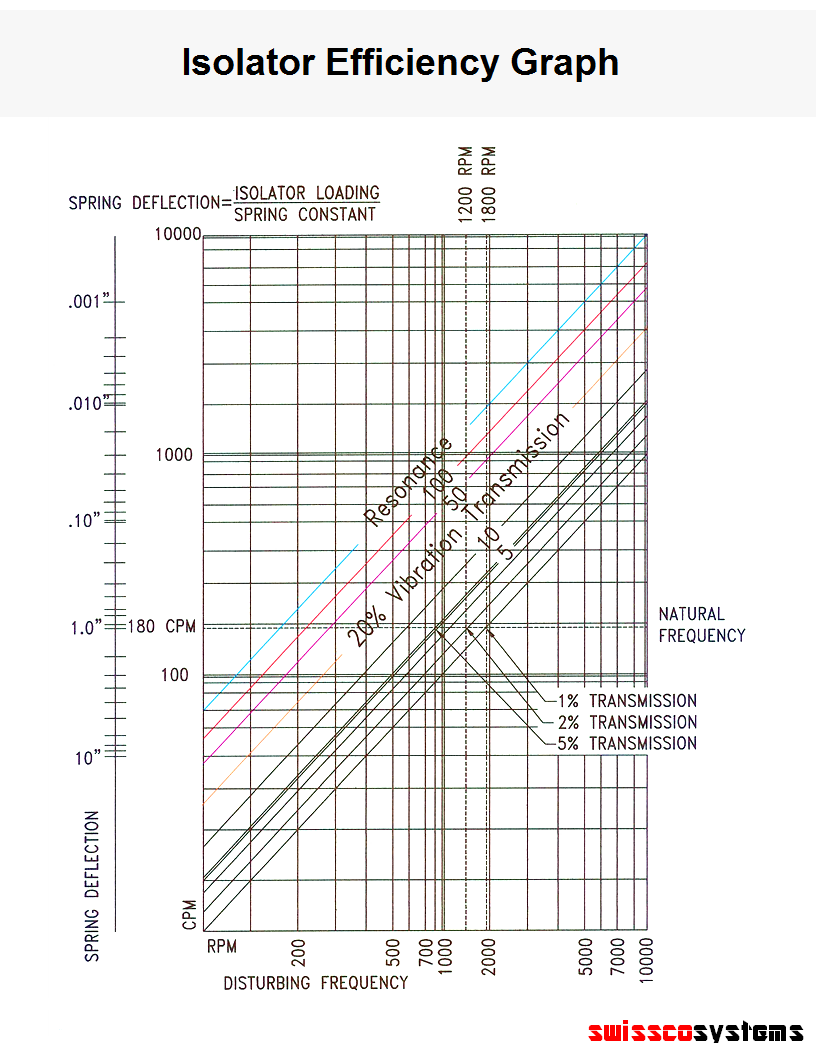

Efficiency Graph
Efficiency Graph
press to zoom
Dimensions
Dimensions
press to zoom
Design & Order Process
Design & Order Process
press to zoom
